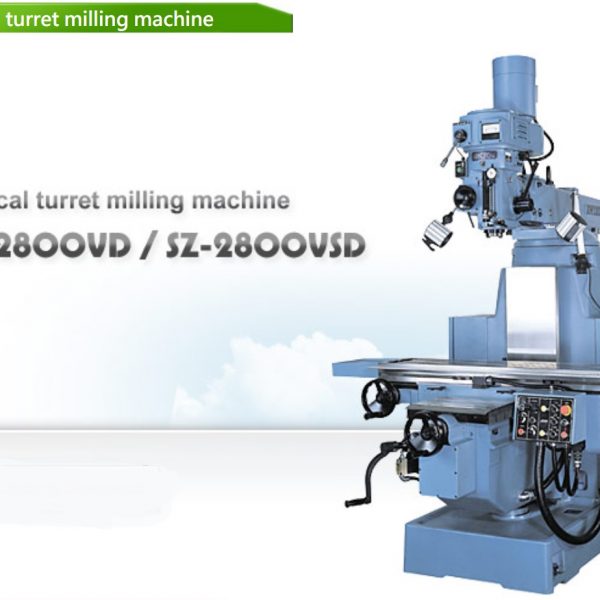

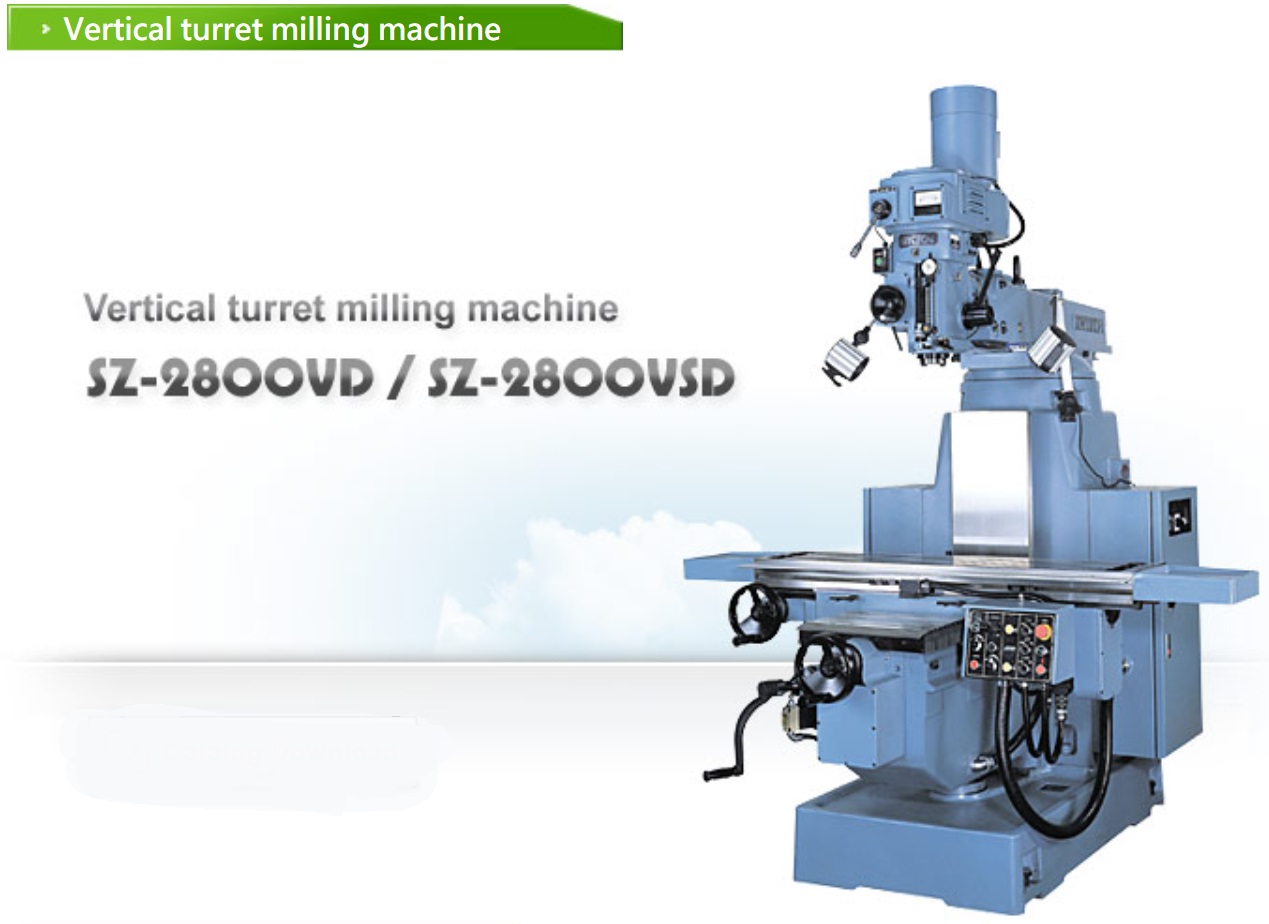

Description
Features
Lubrication oil control valve
Pressure-reserved lubrication oil control valve are installed as standard to control lubrication oil supply as even as possible to ball screw, Gear and 3 axes.
Pressure-reserved lubrication oil control valve are installed as standard to control lubrication oil supply as even as possible to ball screw, Gear and 3 axes.
Optical scale protection
Protection design on optical scale is built-in from the design stage. It provides the collision & watering free from the scales during the cutting.
Protection design on optical scale is built-in from the design stage. It provides the collision & watering free from the scales during the cutting.
Quality inspection equipment
German-made 3D coordinate measuring machine is employed in our machine shop. All precision components and parts are precisely inspected.
German-made 3D coordinate measuring machine is employed in our machine shop. All precision components and parts are precisely inspected.
High rigidity machine structure
FC30 & FCD45 are materialized on machine frame structure. All frames are compulsorily by tempering treatment to reduce the inner stress. It ensures the features of the highest resistance, deformation-free and highest rigidity. With enforced ribs design, the harmonious vibration during cutting is absolutely minimized. All machine life can be prolonged accordingly.
FC30 & FCD45 are materialized on machine frame structure. All frames are compulsorily by tempering treatment to reduce the inner stress. It ensures the features of the highest resistance, deformation-free and highest rigidity. With enforced ribs design, the harmonious vibration during cutting is absolutely minimized. All machine life can be prolonged accordingly.
Precision ball screw
Pre-loaded with double nuts C5 class precision ball screw is installed on X & Y axes ensuring the transmission quality –small backlash & fine positioning.
Pre-loaded with double nuts C5 class precision ball screw is installed on X & Y axes ensuring the transmission quality –small backlash & fine positioning.
Standrd Accessories
1. Draw bar. (manual)
2. Tool box and tools.
3. Chip cover on y axis (rubber)
4. Working light
5. Tapping equipment of spindle
6. X axis motor automatic feed
2. Tool box and tools.
3. Chip cover on y axis (rubber)
4. Working light
5. Tapping equipment of spindle
6. X axis motor automatic feed
Optional Accessories
1. Draw bar. (pneumatic)
2. Y axis motor automatic feed
3. Coolant system
4. Chip cover on y axis (stainless)
5. Table splash guard
6. Digital readout
7. CE regulation
2. Y axis motor automatic feed
3. Coolant system
4. Chip cover on y axis (stainless)
5. Table splash guard
6. Digital readout
7. CE regulation
Specification
| Model | SZ-2800VD | SZ-2800VSD | |
|---|---|---|---|
| Main Spindle | Spindle speed | 75~3600rpm 16 speed | 60~3600rpm Variable speed |
| Spindle taper | NST #40 | NST #40 | |
| Swive angle of head | 45° (R&L) | 45° (R&L) | |
| Overarm travel | 550mm | 550mm | |
| Quill travel | 140mm | 140mm | |
| Distance of Spindle to table | 0 ~ 630mm | 0 ~ 630mm | |
| Distance of Spindle center to column surface | 165 ~ 615mm | 165 ~ 615mm | |
| Quill feed per revolution of spindle | 0.035/0.07/0.14mm(a circe) | 0.035/0.07/0.14mm(a circe) | |
| Table | Working table area (LxW) | 1350 x 305mm | 1350 x 305mm |
| Longitudinal travel manual/auto | 800mm | 800mm | |
| Cross travel | 450mm | 450mm | |
| Vertical travel of knee | 450mm | 450mm | |
| T-slots | 16 x 3 x 63mm | 16 x 3 x 63mm | |
| Cutting federate (X) | 0 ~ 1500mm / min | 0 ~ 1500mm / min | |
| Rapid traverse (X) | 3000mm / min | 3000mm / min | |
| Table elevating speed | 1150mm / min | 1150mm / min | |
| Motor | Main spindle | 3.7kw (5HP) | 3.7kw (5HP)AC |
| Table elevating | 0.75kw (1HP) | 0.75kw (1HP) | |
| Lubricating pump | 150w | 150w | |
| Electromagnetic pump | 40w | 40w | |
| Machine Weight & Packing | Machine measurement (LxWxH) | 2050 x 2300 x 2560mm | 2050 x 2300 x 2560mm |
| Packing measurement (LxWxH) | 1900 x 1500 x 2300mm | 2050 x 2300 x 2600mm | |
| Net weight | 2800kgs | 2830kgs | |
| Gross weight | 3200kgs | 3300kgs | |
| * All specification , dimension and design characteristics SHOUn in this catalogue are subject to change without notice. |
