Description
Features
Lubrication oil control valve
Pressure-reserved lubrication oil control valve are installed as standard to control lubrication oil supply as even as possible to ball screw, Gear and 3 axes.
Pressure-reserved lubrication oil control valve are installed as standard to control lubrication oil supply as even as possible to ball screw, Gear and 3 axes.
Optical scale protection
Protection design on optical scale is built-in from the design stage. It provides the collision & watering free from the scales during the cutting.
Protection design on optical scale is built-in from the design stage. It provides the collision & watering free from the scales during the cutting.
Quality inspection equipment
German-made 3D coordinate measuring machine is employed in our machine shop. All precision components and parts are precisely inspected.
German-made 3D coordinate measuring machine is employed in our machine shop. All precision components and parts are precisely inspected.
High rigidity machine structure
FC30 & FCD45 are materialized on machine frame structure. All frames are compulsorily by tempering treatment to reduce the inner stress. It ensures the features of the highest resistance, deformation-free and highest rigidity. With enforced ribs design, the harmonious vibration during cutting is absolutely minimized. All machine life can be prolonged accordingly.
FC30 & FCD45 are materialized on machine frame structure. All frames are compulsorily by tempering treatment to reduce the inner stress. It ensures the features of the highest resistance, deformation-free and highest rigidity. With enforced ribs design, the harmonious vibration during cutting is absolutely minimized. All machine life can be prolonged accordingly.
Precision ball screw
Pre-loaded with double nuts C5 class precision ball screw is installed on X & Y axes ensuring the transmission quality –small backlash & fine positioning.
Pre-loaded with double nuts C5 class precision ball screw is installed on X & Y axes ensuring the transmission quality –small backlash & fine positioning.
Standrd Accessories
1. Tool box and tools.
2. Working light
3. Draw bar. (manual)
4. Tapping equipment of spindle
5. Chip cover on Y axis (rubber)
6. X axis motor automatic feed
2. Working light
3. Draw bar. (manual)
4. Tapping equipment of spindle
5. Chip cover on Y axis (rubber)
6. X axis motor automatic feed
Optional Accessories
1. DRO
2. Draw bar. (pneumatic)
3. Coolant system
4. Y axis motor automatic feed
5. Chip cover on y axis (stainless)
2. Draw bar. (pneumatic)
3. Coolant system
4. Y axis motor automatic feed
5. Chip cover on y axis (stainless)
Specification

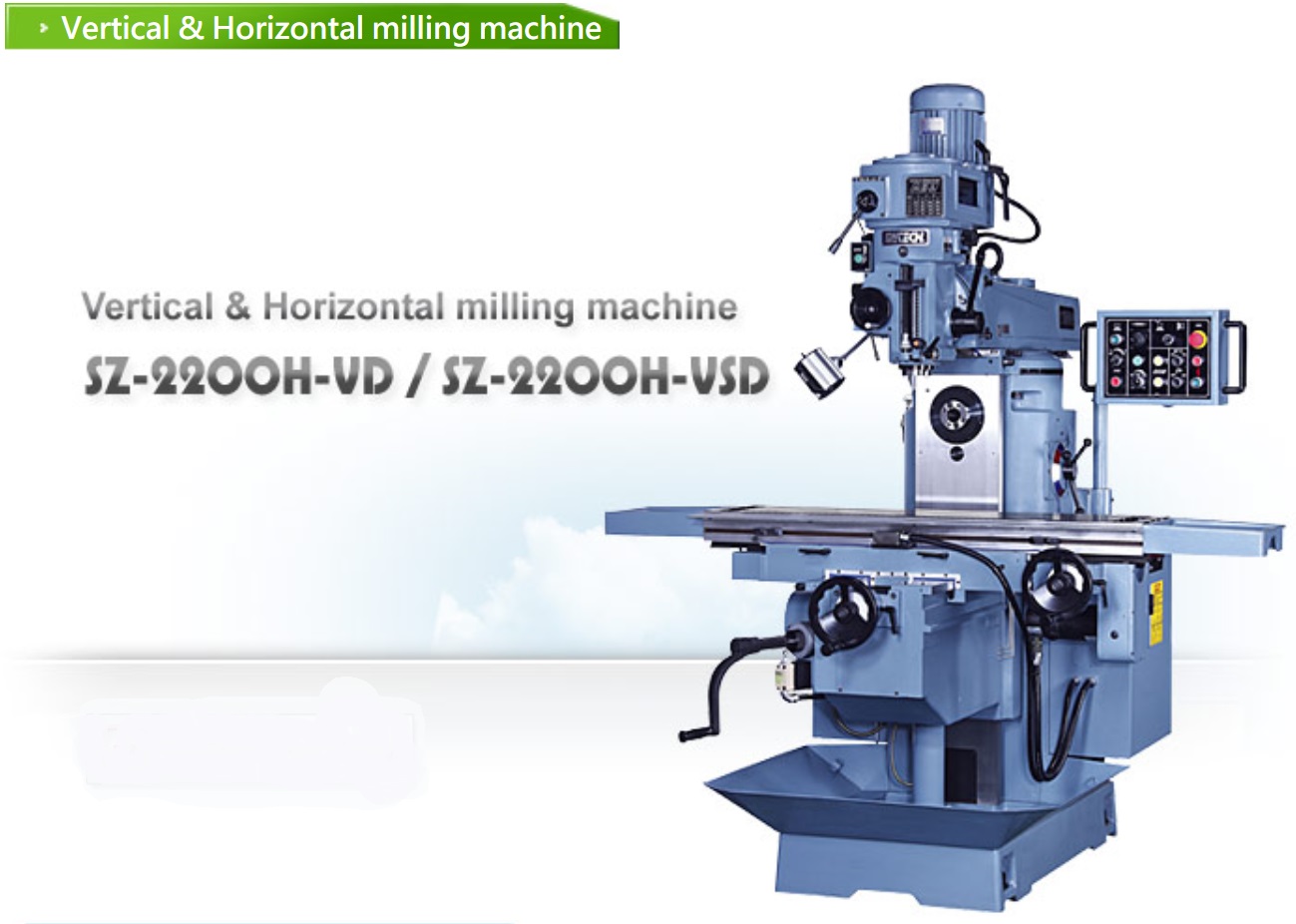

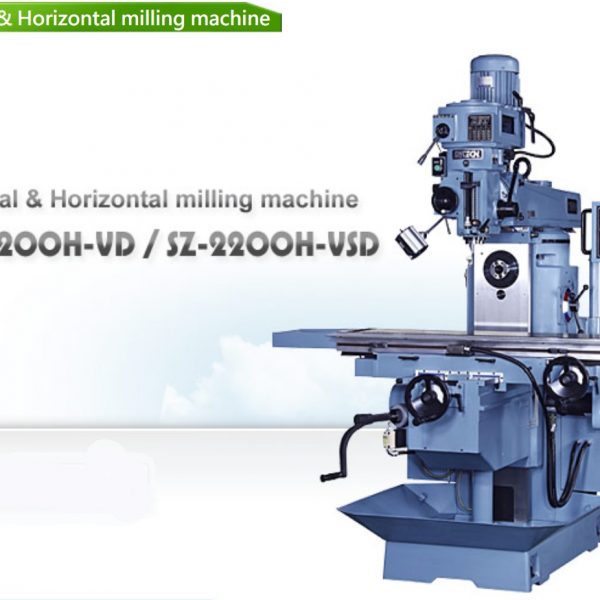

| Model | SZ-2200H-VD | SZ-2200H-VSD | |
|---|---|---|---|
| Main Spindle | Spindle speed | 75~3600rpm 16 speed | 60~3600rpm Variable speed |
| Spindle speed (H series) | 70~1050rpm 9 speed | 70~1050rpm 9 speed | |
| Swive angle of head | 45° (R&L) | 45° (R&L) | |
| Overarm travel | 450mm | 450mm | |
| Quill travel | 140mm | 140mm | |
| Distance of Spindle to table | 0 ~ 530mm | 0 ~ 530mm | |
| Distance of Spindle center to column surface | 150 ~ 600mm | 150 ~ 600mm | |
| Quill feed per revolution of spindle | 0.035/0.07/0.14mm(a circe) | 0.035/0.07/0.14mm(a circe) | |
| Table | Working table area (LxW) | 1350 x 305mm | 1350 x 305mm |
| Longitudinal travel manual/auto | 800mm | 800mm | |
| Cross travel | 400mm | 400mm | |
| Vertical travel of knee | 400mm | 400mm | |
| T-slots | 16x 3 x 63mm | 16 x 3 x 63mm | |
| Cutting federate (X) | 0 ~ 1500mm / min | 0 ~ 1500mm / min | |
| Rapid traverse (X) | 3000mm / min | 3000mm / min | |
| Table elevating speed | 1150mm / min | 1150mm / min | |
| Motor | Main spindle | 3.7kw (5HP) | 3.7kw (5HP)AC |
| Table elevating | 0.75kw (1HP) | 0.75kw (1HP) | |
| Lubricating pump | 150w | 150w | |
| Electromagnetic pump | 40w | 40w | |
| Machine Weight & Packing | Machine measurement (LxWxH) | 2800 x 2300 x 2350mm | 2800 x 2300 x 2400mm |
| Packing measurement (LxWxH) | 1755 x 1760 x 2150mm | 1755 x 1760 x 2150mm | |
| Net weight | 2400kgs | 2430kgs | |
| Gross weight | 2600kgs | 2630kgs | |
| * All specification , dimension and design characteristics SHOUn in this catalogue are subject to change without notice. |
