Description
Features
| 1.The ATC of supporting seat and column are one-piece. It is stability when tool change tool. | ||
| 2.Roller type Linear Guideway and C3 Ball Screw on X,Y,Z- axis | ||
| 3.The base structure is reinforced by internal ribbing to ensure high rigidity and stability. It is suitable for heavy cutting and precision machining | ||
 |
 |
 |
| Total Machining Time: 1hr. 6min. 10sec Workpiece Dimension: 100 x 100 x 50mm Meterial:NAK-80 No. of tools used: 3 |
Total Machining Time: 27min. 46sec Workpiece Dimension: 100 x 100 x 50mm Meterial: NAK-80 No. of tools used: 1 |
Total Machining Time: 31min. 43sec Workpiece Dimension: 50 x 50 x 50mm Meterial: NAK-80 No. of tools used: 2 |
Standrd Accessories
| 1. Full-closed splash guard | 2. Automatic power off |
| 3. Oil skimmer system | 4. Water gun and air gun |
| 5. MITSUBISHI controller M70A | 6. Chips flush coolant system |
| 7. Tools box | 8. Work lamp |
| 9. Arm type ATC with 24 tool capacity | 10. Automatic lubrication system |
| 11. Heat exchanger | 12. Alarm light |
| 13.Screw type chip conveyer | 14. Automatic tool length measuring device |
| 15.Spindle oil cooler system | 16.Spindle speed 10000rpm |
Optional Accessories
| 1.FANUC system controller | 2.SIEMENS system controller |
| 3.Direct type Spindle 12,000/15,000 RPM | 4.Built type Spindle 20,000/24,000 RPM |
| 5.Coolant through spindle | 6.Air conditioner |
| 7.Transformer | 8.Voltage regulator |
| 9.Flat type chip conveyer | 10.CE mark |
| 11.3-Axes optical scale | 12.Breakage detection system |
| 13.Oil mist collector | 14.Inverter ATC System |
Specification

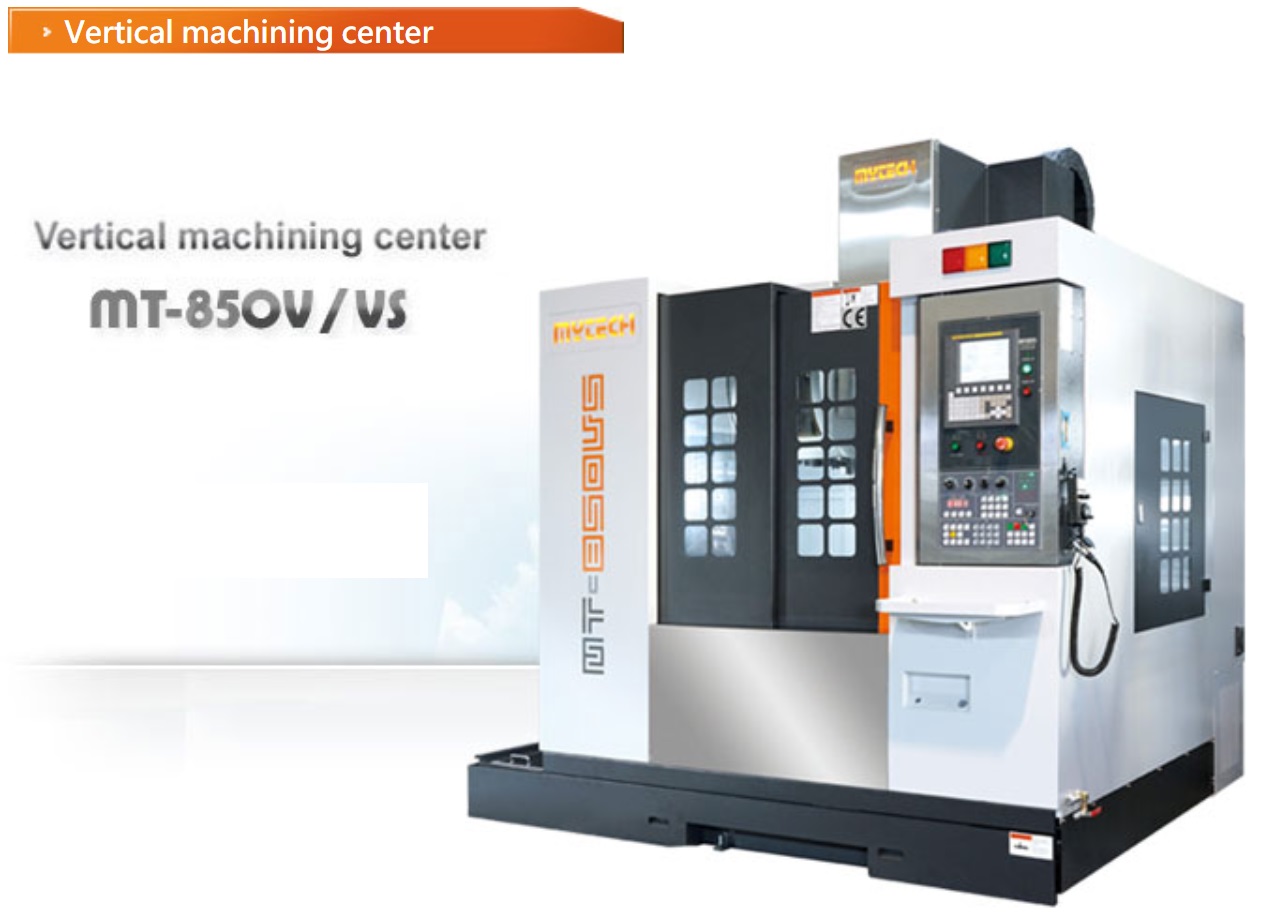

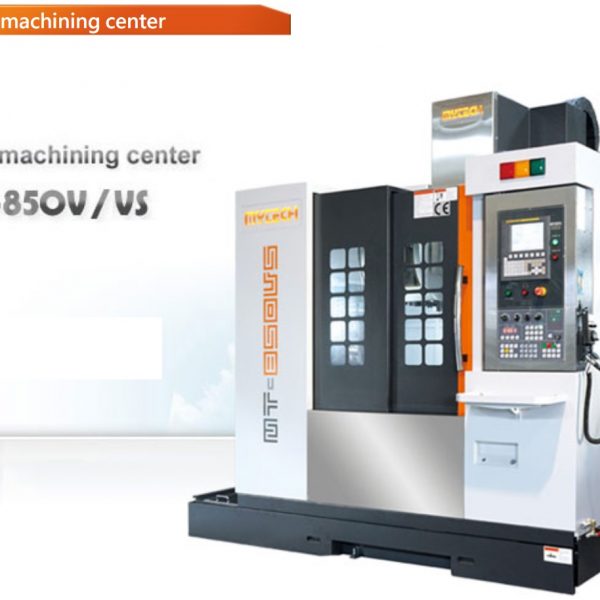

| Model | MT-850 V | MT-850 VS | ||
| Table | Size | mm | 900×500 | 900×500 |
| T-slot (width x no x distance) | mm x T | 18x5x90 | 18x5x90 | |
| Maximun table load | kgs | 300 | 300 | |
| Travel | X, Y, Z -axis | mm | 810x500x500 | 810x500x500 |
| Table top surface to spindle nose | mm | 100-600 | 100-600 | |
| Distance between spindle center and column surface | mm | 580 | 580 | |
| Linear guideway type ( X / Y / Z-axis ) | mm | 30/35/35 | 30/35/35 (Roller type) | |
| Ball screw (X/ Y/ Z-axis) | ∅32 / ∅32 / ∅32 | ∅32 / ∅32 / ∅32 | ||
| Spindle | Spindle holder | BELT | DIRECT | |
| Taper | BT40 | BT40 | ||
| Diameter | mm | 70 | 70 | |
| Spindle speed | rpm | 10000 | 10000 | |
| Feed | Cutting feedrate X/ Y/ Z (G01) | m / min | 20 / 20 / 20 | 20 / 20 / 20 |
| Rapid feedrate X/ Y/ Z (G0) | m / min | 36 / 36 / 36 | 36 / 36 / 36 | |
| ATC | Tool selection | ARM | ARM | |
| Max. tool Dia | mm | ψ75 /ψ150 | ψ75 /ψ150 | |
| Max. tool length | mm | 300 | 300 | |
| Max. tool weight | kgs | 7 | 7 | |
| Tool type | BT40 | BT40 | ||
| Tool magazine capacity (Arm type) | T | 24 | 24 | |
| Motors | Spindle motor (30 min. ) | kw | 7.5/11 | 7.5/11 |
| X/ Y/ Z -Axis | kw | 2.0/2.0/3.0 (Mitsubishi) 1.6/1.6/4.0 (FANUC) |
2.0/2.0/3.0 (Mitsubishi) 1.6/1.6/4.0 (FANUC) |
|
| Coolant pump | kw | 0.75 | 0.75 | |
| Other | Machine Space ( L x W ) | mm | 2200×2050 | 2200×2050 |
| Coolant tank capacity | L | 250 | 250 | |
| Net weight | kgs | 4500 | 4500 | |
| * All specification , dimension and design characteristics shown in this catalogue are subject to change without notice. |
