Description
Features
| 1. The ATC of supporting seat and column are one-piece. It is stability when tool change tool. |
| 2.Linear Guideway and C3 Ball Screw on X,Y,Z – axis |
| 3.The machine processing fast, high precision, three axes rapid feedrate 48m/min, it is save time to achieve economic efficiency. |
| 4.Applicable Industries: 3C industries, Communications industry, Molds, Automotive and motorcycle parts. |
Standrd Accessories
| 1. Full-closed splash guard | 2. Automatic power off |
| 3. Oil skimmer system | 4. Water gun and air gun |
| 5. Chips flush coolant system | 6. Tools box |
| 7. Work lamp | 8. Arm type ATC with 20 tool capacity |
| 9. Automatic lubrication system | 10. Heat exchanger |
| 11. Alarm light | 12. Screw type chip conveyer |
| 13. Spindle oil cooler system | 14. Spindle speed 10000rpm |
| 15. MITSUBISHI controller FCA70P |
Optional Accessories
| 1.FANUC system controller | 2.SIEMENS system controller |
| 3.Direct type Spindle 12,000/15,000 RPM | 4.Built type Spindle 20,000/24,000 RPM |
| 5.Coolant through spindle | 6.Air conditioner |
| 7.Transformer | 8.Voltage regulator |
| 9.Flat type chip conveyer | 10.CE mark |
| 11.3-Axes optical scale | 12.Breakage detection system |
| 13.Oil mist collector | 14.Inverter ATC System |
Specification

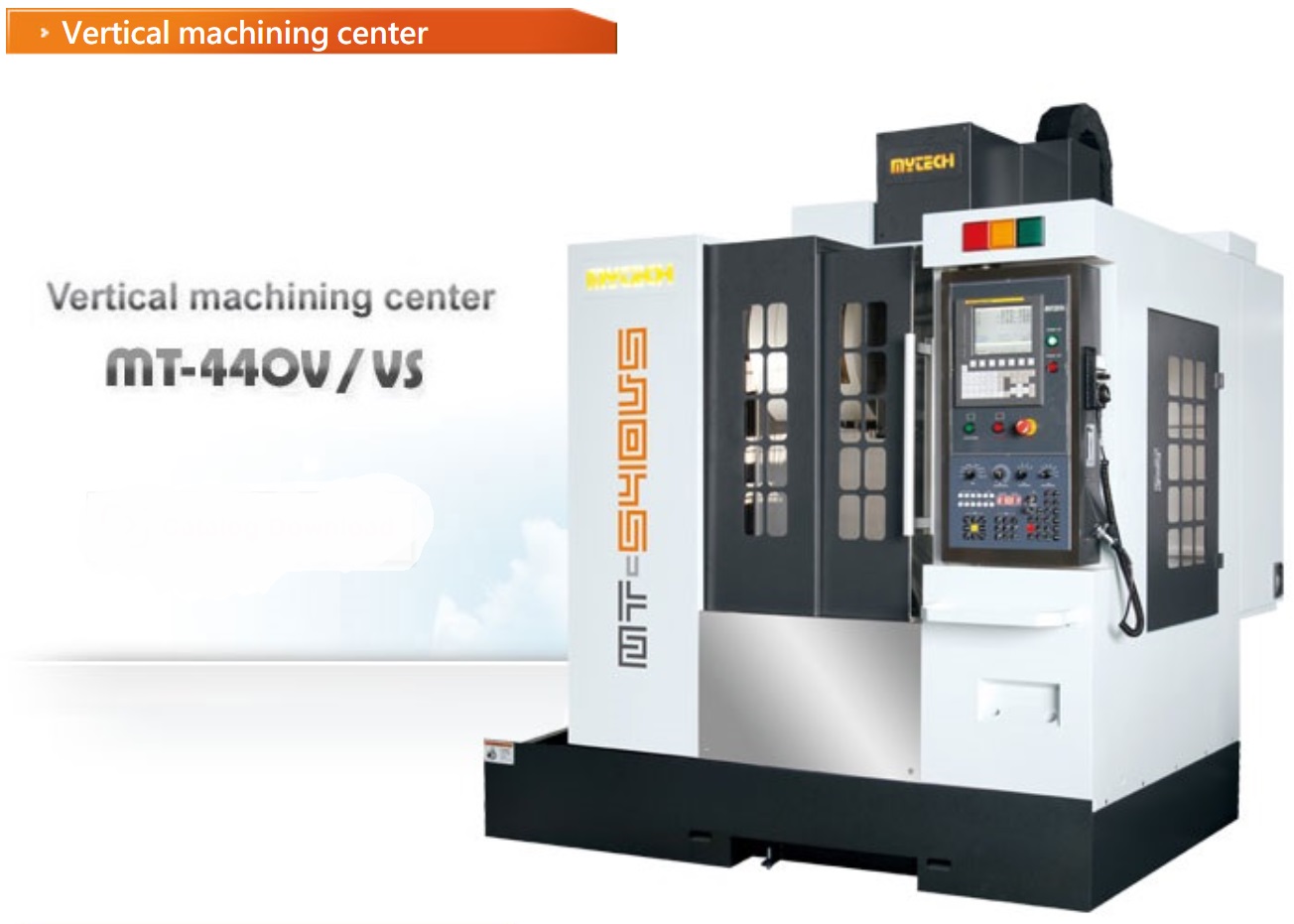

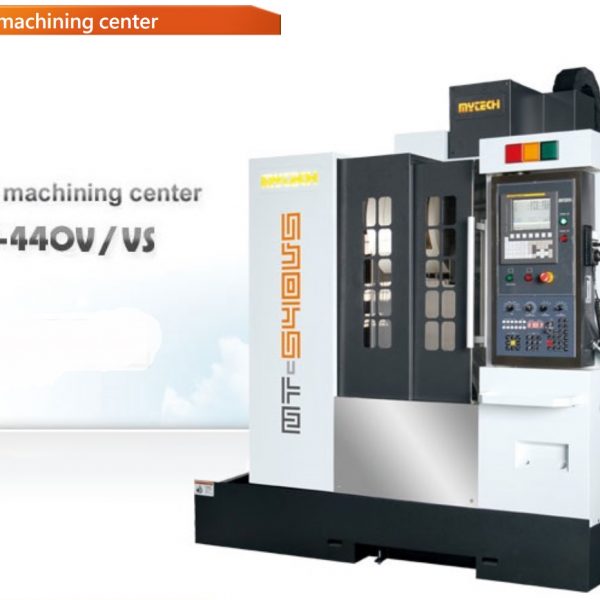

| Model | MT-440 V | MT-440 VS | ||
| Table | Size | mm | 550×450 | 550×450 |
| T-slot (width x no x distance) | mm x T | 18x5x90 | 18x5x90 | |
| Maximun table load | kgs | 200 | 200 | |
| Travel | X, Y, Z -axis | mm | 450x400x400 | 450x400x400 |
| Table top surface to spindle nose | mm | 120-520 | 120-520 | |
| Distance between spindle center and column surface | mm | 490 | 490 | |
| Linear guideway type ( X / Y / Z-axis ) | mm | 25/25/30 | 25/25/30 | |
| Ball screw ( X / Y / Z-axis ) | mm | ∅28/∅28/∅32 | ∅28/∅28/∅32 | |
| Spindle | Spindle holder | BELT | DIRECT | |
| Taper | BT40 | BT40 | ||
| Diameter | mm | 60 | 60 | |
| Spindle speed | rpm | 10000 | 10000 | |
| Feed | Cutting feedrate X/ Y/ Z (G01) | m / min | 24/24/24 | 24/24/24 |
| Rapid feedrate X/ Y/ Z (G0) | m / min | 48/48/48 | 48/48/48 | |
| ATC | Type | ARM | ARM | |
| Max. tool Dia | mm | ∅75 /∅150 | ∅75 /∅150 | |
| Max. tool length | mm | 200 | 200 | |
| Max. tool weight | kgs | 7 | 7 | |
| Tool type | BT40 | BT40 | ||
| Tool magazine capacity | T | 20 | 20 | |
| Motors | Spindle motor (Cont./30 min) | kw | 5.5/7.5 | 5.5/7.5 |
| X/ Y/ Z -Axis | kw | 1.5/1.5/3.0(Mitsubishi) 1.4/1.4/3.0 (FANUC) |
1.5/1.5/3.0(Mitsubishi) 1.4/1.4/3.0(FANUC) |
|
| Coolant pump | kw | 0.75 | 0.75 | |
| Other | Machine Space ( L x W ) | mm | 1700×1860 | 1700×1860 |
| Coolant tank capacity | L | 220 | 220 | |
| Net weight | kgs | 3400 | 3400 | |
| * All specification , dimension and design characteristics shown in this catalogue are subject to change without notice. |
