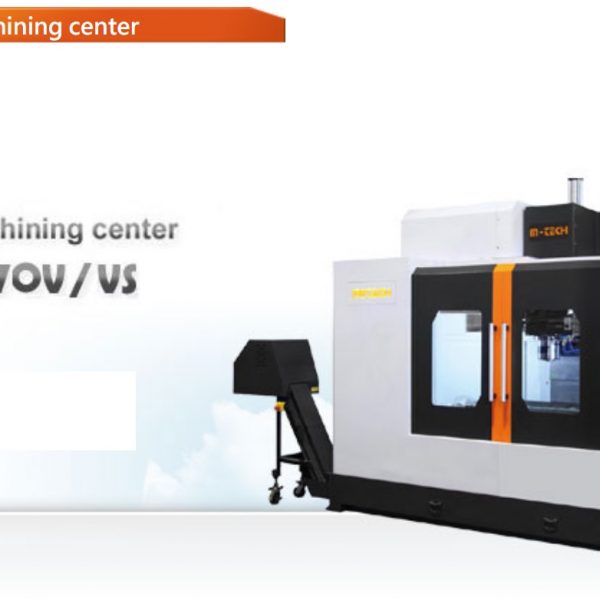

Description
Features
| 1.Pneumatic counterweight system greatly lessens the ripple effect of inertia during the feed motion on Z axis. |
| 2.Base frame consist of four heavy duty roller linear guides, greatly strengthened the fundamental structure of machine. |
| 3.Y axis used twin-chip auger (front-out) |
Standrd Accessories
| 1. Full-closed splash guard | 2. Automatic power off |
| 3. Oil skimmer system | 4. Water gun and air gun |
| 5. Chips flush coolant system | 6. Tools box |
| 7. Work lamp | 8. Arm type ATC with 24 tool capacity |
| 9. Automatic lubrication system | 10. Heat exchanger |
| 11. Alarm light | 12. Screw type chip conveyer |
| 13. Automatic tool length measuring device | 14. Spindle oil cooler system |
| 15. Spindle speed 10000rpm | 16.MITSUBISHI controller FCA70P |
Optional Accessories
| 1.FANUC system controller | 2.SIEMENS system controller |
| 3.Direct type Spindle 12,000/15,000 RPM | 4.Built type Spindle 20,000/24,000 RPM |
| 5.Coolant through spindle | 6.Air conditioner |
| 7.Transformer | 8.Voltage regulator |
| 9.Flat type chip conveyer | 10.CE mark |
| 11.3-Axes optical scale | 12.Breakage detection system |
| 13.Oil mist collector | 14.Inverter ATC System |
Specification
| Model | MT-1370 V | MT-1370 VS | ||
| Table | Size | mm | 1400×600 | 1400×600 |
| T-slot (width x no x distance) | mm x T | 18 x 5 x110 | 18 x 5 x110 | |
| Maximun table load | kgs | 800 | 800 | |
| Travel | X, Y, Z -axis | mm | 1300x650x670 | 1300x680x690 |
| Table top surface to spindle nose | mm | 120-790 | 105-805 | |
| Distance between spindle center and column surface | mm | 670 | 690 | |
| Linear guideway type ( X / Y / Z-axis ) | mm | 35 / 45 / 45 | 35/35,45/45 (Roller type) | |
| Ball screw (X/ Y/ Z-axis) | ∅40 / ∅40 / ∅40 | ∅40 / ∅40 / ∅40 | ||
| Spindle | Spindle holder | BELT | DIRECT | |
| Taper | BT40 | BT40 | ||
| Diameter | mm | 60 | 70 | |
| Spindle speed | rpm | 10000 | 10000 | |
| Feed | Cutting feedrate X/ Y/ Z (G01) | m / min | 20 / 20 / 20 | 20 / 20 / 20 |
| Rapid feedrate X/ Y/ Z (G0) | m / min | 36 / 36 / 36 | 30 / 30 / 30 | |
| ATC | Tool selection | ARM | ARM | |
| Max. tool Dia | mm | ψ75 /ψ150 | ψ75 /ψ150 | |
| Max. tool length | mm | 300 | 300 | |
| Max. tool weight | kgs | 7 | 7 | |
| Tool type | BT40 | BT40 | ||
| Tool magazine capacity (Arm type) | T | 24 | 24 | |
| Motors | Spindle motor (30 min. ) | kw | 11 / 15 | 11 / 15 |
| X/ Y/ Z -Axis | kw | 3.0/3.0/4.0 (Mitsubishi) 3.0/3.0/4.0 (FANUC) |
3.0/3.0/4.0 (Mitsubishi) 3.0/3.0/4.0 (FANUC) |
|
| Coolant pump | kw | 0.75 | 0.75 | |
| Other | Machine Space ( L x W ) | mm | 3300×2250 | 3300×2250 |
| Coolant tank capacity | L | 350 | 350 | |
| Net weight | kgs | 8000 | 8000 | |
| * All specification , dimension and design characteristics shown in this catalogue are subject to change without notice. |
