Description
Features
 |
 |

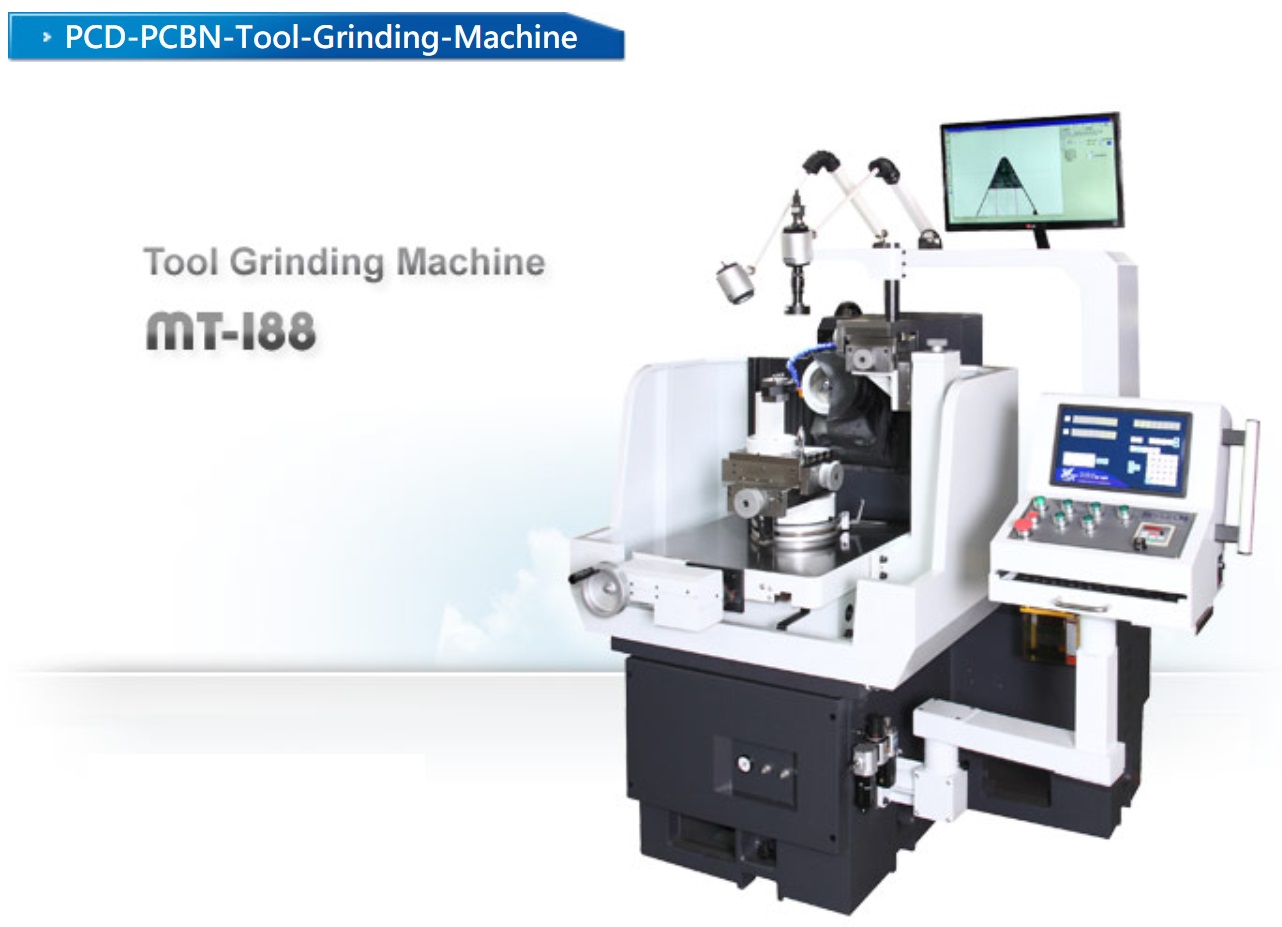

| The MT-188 used high precition camera system and software.The machine can accuately detect variety arc,but also to measure the grooving width and tip angle. Measured directly after the end of the process, the size can be detected after grouding. Precision and producticity has been greatly improved. | The machine base is made of high quality overall casting, high rigidity, anti-vibration design, high stability, can satisfy any requirements of grinding superhard material. |
 |
 |
| The control panel can adjust grinding wheel speed instantly.Different wheel most to arrange different speed to achieve the best cutting result. | OPTION Large capatiry 100 liter tank with the bag in filter for good effect and easy to clean. |
Standrd Accessories
1. High resolution camera with 22″ LCD monitor and measurement system
2. Tool stand(5 pcs)
3. Optiacl linear scale with digital display counter(0.001 mm increment)
4. Grinding wheel spindle with variable speed (0~5000rpm)
5. 2 machine work light.( 35W )
Options
1. Round bar grinding attachment.
2. Cooling system with 100 liters tank.
2. Cooling system with 100 liters tank.
Machine Specification
| MODEL | MT-188 |
|---|---|
| Spindle speed | 0~6000RPM / min (50Hz) |
| Wheel size | 150D X 40H X 40T |
| Grinding pressure | 0~0.4Mpa |
| Grinding wheel oscillation distance | 0~40 mm |
| Grinding wheel oscillation stroke | 40 min |
| Grinding wheel oscillation position | 0~188mm |
| Grinding wheel inclindtion | -2°~ 24° |
| Swivel table swiveling angle | 270° |
| Worktable clamping size | 210 X 160 X 4 slot |
| Dimension | 1396 X 1601 X 1582 mm |
| Weight | 1650 kg |
| * All specification , dimension and design characteristics shown in this catalogue are subject to change without notice. |
