Description
Features
| VD Specially designed | ||
| 1.Ladder type beam construction. | ||
| 2.Three linear ways on X-axis. The layout ensures maximum stability for the spindle head during heavy cutting. | ||
| 3.Four linear ways on Y-axis, it be used 7kw servo motor. The worktable load up to 3800kgs. | ||
  |
||
Standard Accessories
- Full-closed splash guard
2. Oil skimmer system
3. Water gun and air gun
4. Chips flush system
5. Tools box
6. LED work lamp
7.Automatic lubrication system
8.Heat exchanger for electric cabinet
9.3 colour Alarm light
10.Screw type chip conveyer
11.Spindle oil cooler system
12.Spindle splash ring
13.Automatic tool length measuring device
Optional Accessories
- Flat type chip conveyer
2. Coolant through spindle
3. Automatic workpiece measuring device
4. 3-Axes optical scale
5. CE
Specification

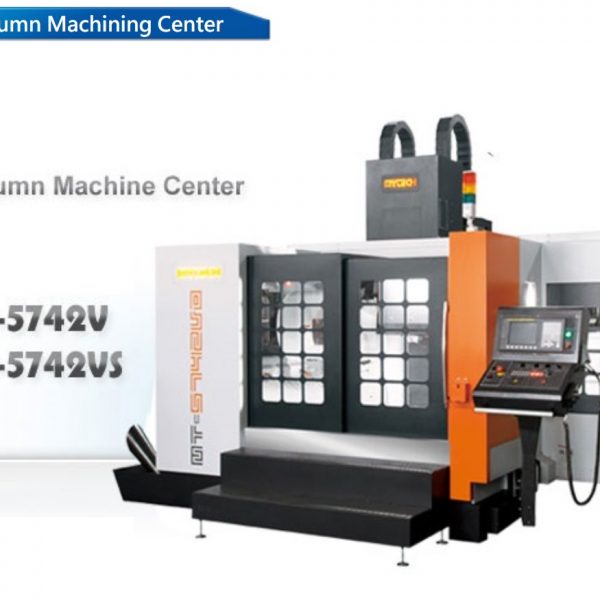

| MODEL | MT-5742V | MT-5742VS | |
| TRAVEL | X axis travel | 1450 mm | 1450 mm |
| Y axis travel | 1080 mm | 1080 mm | |
| Z axis travel | 700 mm | 700 mm | |
| Spindle nose to table surface | 110-810 mm | 110-810 mm | |
| spindle center to column slide ways | 1100 mm | 1100 mm | |
| TABLE | Distance table surface to ground | 627 mm | 627 mm |
| Table size | 1450X1000 mm | 1450X1000 mm | |
| T-slot | 18X7X140 mm | 18X7X140 mm | |
| Maximum table load | 2000 kg | 2500 kg | |
| SPINDLE | |||
| Spindle speed | Direct 15000 rpm | Built 20000 rpm | |
| Taper | BBT 40 | BBT 40 | |
| Spindle motor | 15 kw | 23 kw | |
| FEED & PRECISION | X / Y / Z axis Rapid feedrate | 20 /20 / 20 m/min | 20 /20 / 20 m/min |
| X / Y / Z axis Cutting feedrate | 20 /20 / 20 m/min | 20 /20 / 20 m/min | |
| Positioning accuracy(X/Y/Z) | ±0.004 | ±0.004 | |
| Repeatability (X/Y/Z) | ±0.002 | ±0.002 | |
| ATC | ATC Type | Arm | Umbrella |
| TOOL Capacity | 24 | 12 | |
| MAX. tool Dia(with Adjacent Pocket Empty) | 150 mm | 200 mm | |
| MAX. tool length | 300 | 300 | |
| MAX. tool weight | 7 kg | 7 kg | |
| CONTROLLER | Controller | Oi-MF / M 80A | 828D / opt 840D |
| OTHER | Coolant tank capacity | 400 L | 400 L |
| Chip type | Screw | Screw | |
| Machine dimension( L X W) | 3480 X 3000 | 3480 X 3000 | |
| Weight | 12000 | 12000 | |
| Automatic lubrication type | Grease | Grease | |
| * All specification, dimension and design characteristics shown in this catalogue are subject to change without notice. |
