Description
Features

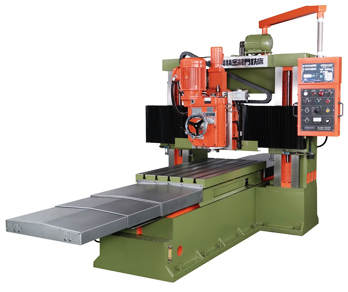

The milling machine is cast from high rigid cast iron through a series of procedures from back fire of blast furnace, normalizing, high frequency heat treatment to precision grinding process. The transmission modulator is installed to have rapid and correct control over precision operation and size adjustment of working pieces. At the same time, this machine is easy to operate. To take a advanced step toward technology and meet the customers demands, we have many technicians for your service, design, and mechanism change. We always welcome your inquiries.
Spindle head gear box design, all the gear with high accuracy grinding to offer heavy cutting high torque and high precision feature.

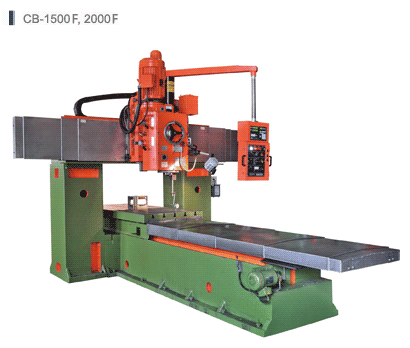

| Model | Unit | CB-1500 | CB-2000 | |
| X Axis travel | mm | 1500 | 2000 | |
| Y Axis travel | mm | 1000 | 1000 | |
| Z Axis travel (head) | mm | 300 | 300 | |
| Distance between the column | mm | 1000 | 1000 | |
| Spindle nose to table surface | mm | 550 | 550 | |
| Table size | mm | 1500×700 | 2000×700 | |
| Vertical head motor | HP | 10 | 10 | |
| Machine weight | kgs | 6500 | 8000 | |
| Machine size | L | mm | 4800 | 5900 |
| W | mm | 2150 | 2150 | |
| H | mm | 2250 | 2250 | |
